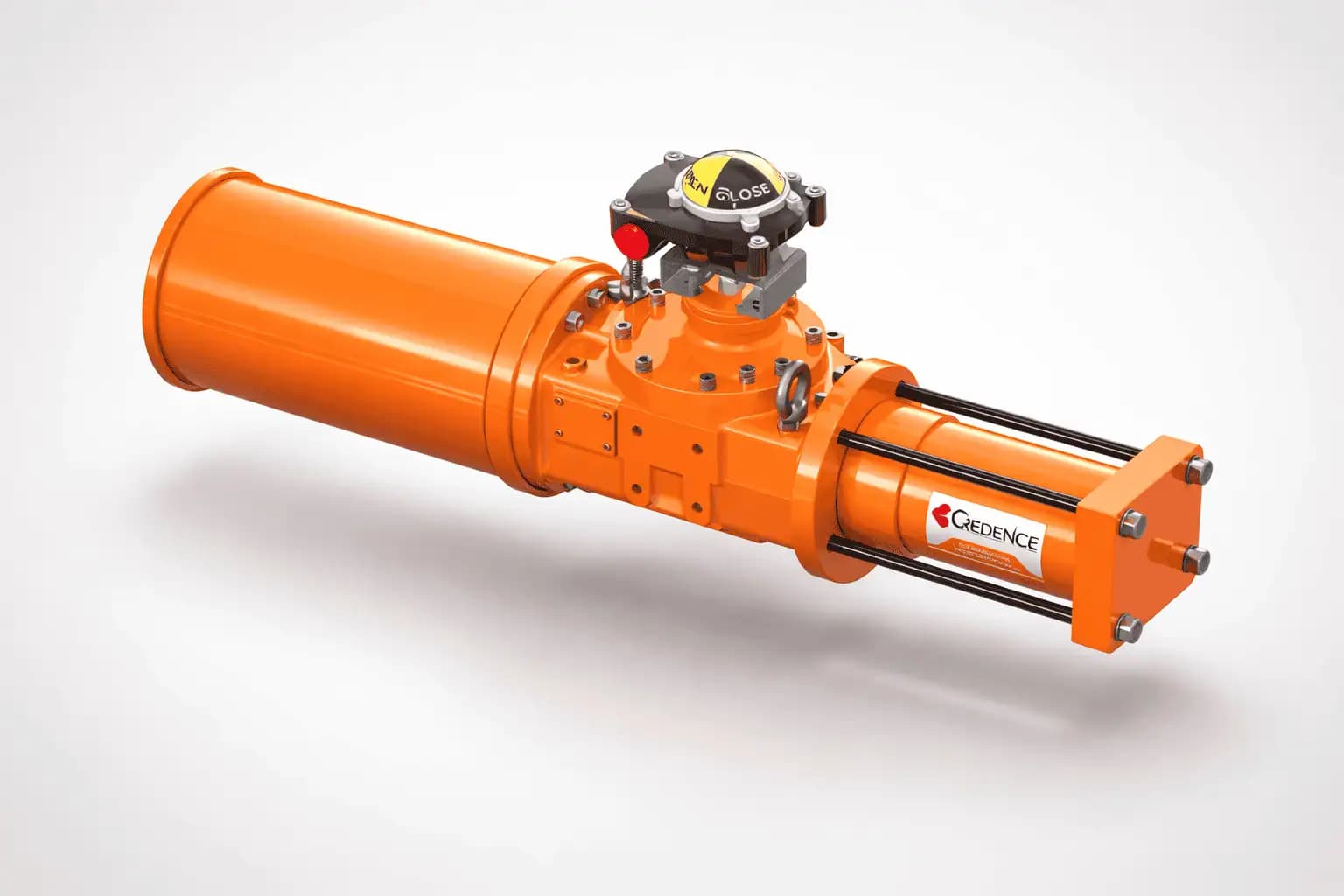

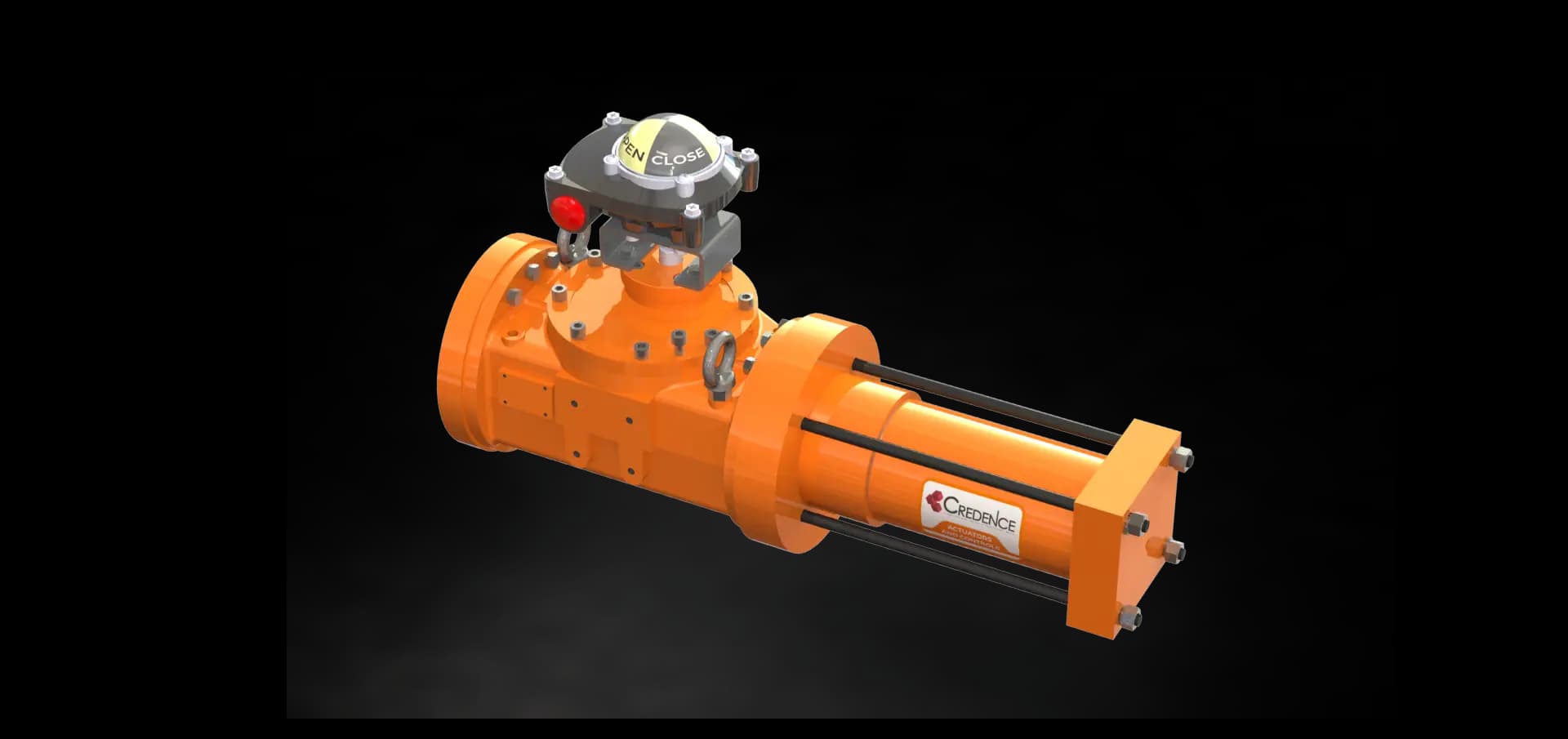

Hydraulic Scotch Yoke Actuators - A Series

Name: Hydraulic Scotch Yoke Actuators - A Series
Brand: Credence Automation

Hydraulic Scotch Yoke Actuators with truly Modular Design, NAMUR SOV Mounting (Patented Technology), IP67 Ingress Protection, Safe Tamper Proof (Patented) Design and Broad Torque / Temperature Range for Quarter-Turn Valve Automation.

Torque Range

49 to 670000 Nm

Get Quote

Patented Flexible Joint for Enhanced Cycle Life
Optional No Tie Bar Design Hydraulic Cylinders
Integrated NAMUR Switch Box Mounting
Interchangeable Modular Design for Ease Of On-Site Fail Position Change
Symmetric / Canted Yoke
Ingress Protection - IP67
Superior Coating On Cylinders and QPQ Coating On Critical Components
Guaranteed Torque Outputs
Bi-Directional Travel Stops Allow for 80° to 100° of Total Travel Adjustment
CE & ATEX Certification 2014/34/EU for use in Explosive Environments
SIL 3 Certification as per IEC 61508
POD (Proof of Design) Certification as per AWWA C 504
